Roots Blower
Roots Blower
Working principle
Roots blower is a positive displacement blower, which separates the inlet and outlet through the "meshing" of a pair of rotors (there is a gap between the rotors, but they do not touch each other). The rotors are driven by a pair of synchronous gears and move in opposite directions, pushing the inhaled gas from the air inlet to the exhaust port without internal compression. The moment the gas reaches the exhaust port, it is pressurized due to the backflow of high-pressure gas on the exhaust side, thus completing the gas transportation. The two rotors do not touch each other, and the gap between them is tightly controlled to achieve sealing, so the discharged gas is not contaminated by lubricating oil.
Performance characteristics
1、Low price; the simplest rotary machine, easy to control and maintain;
2、Pressure changes with back pressure; small flow rate high speed fan has higher efficiency;
3、 Efficiency is generally lower than multi-stage and single-stage centrifugal fans;
4、 It has the best performance-price ratio when the single machine flow rate is less than 100m³/min;
5、 It occupies a large area when the flow rate is greater than 120m³/min.

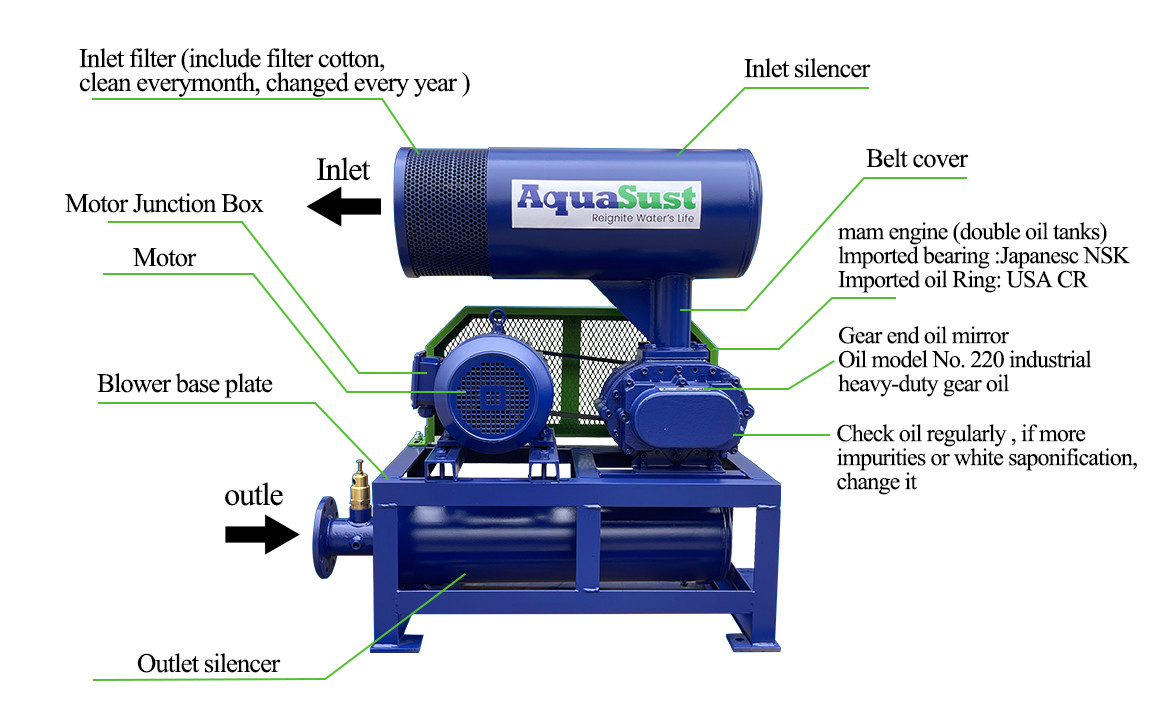

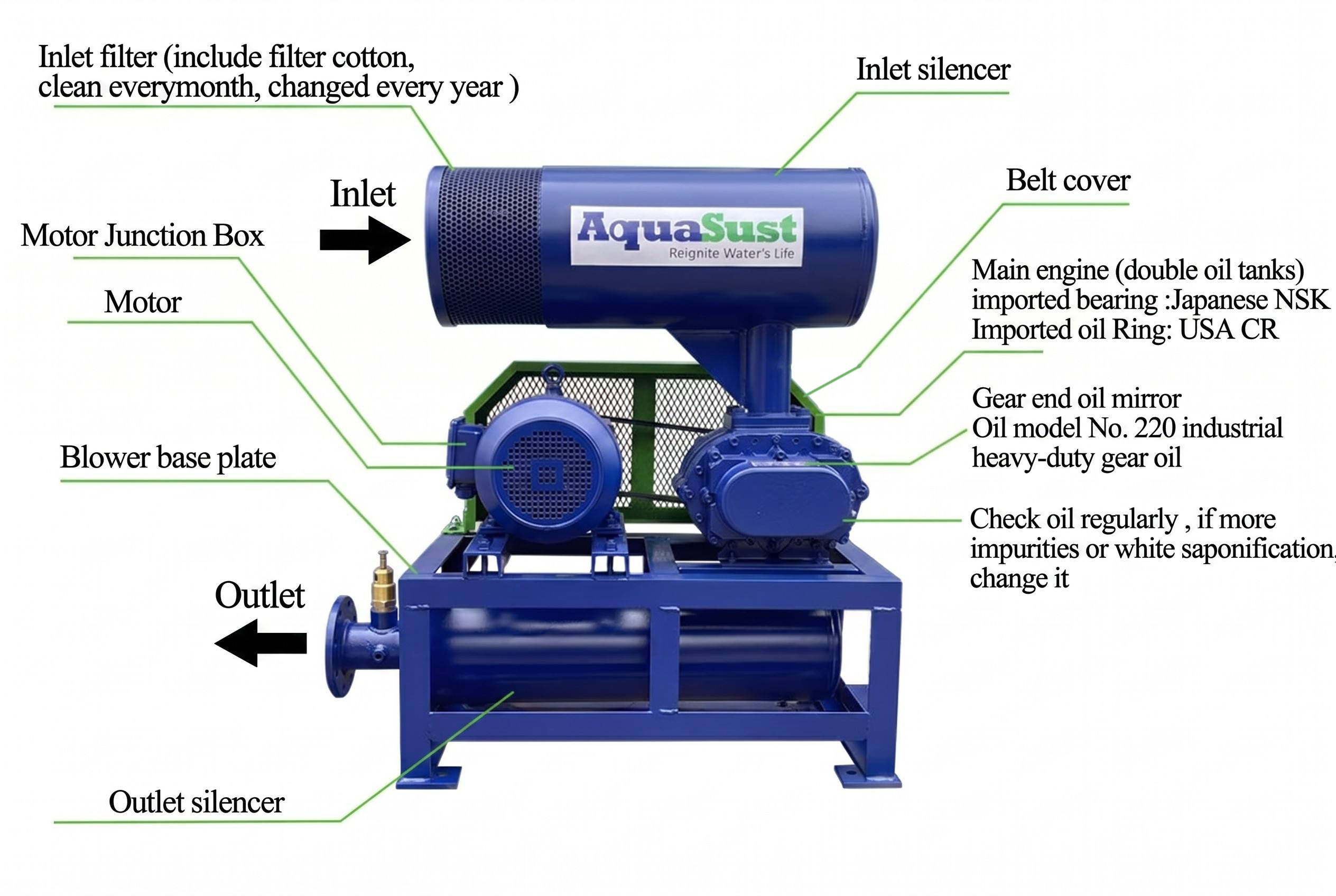

Advantages of the Aquasust Roots Blower
1、Helical synchronous gear: smooth operation and low noise.
2、The impeller uses the impeller & shaft integrated structure , high aceuraey
3、 Compaet structure, the same inlet and outlet impeller structure, flexible installation.
4、There are various installation ways. The air blower can be installed into horizontal airinlet and vertical air inlet using the same bottom base frame.
5、Double oil tanks structure, splash lubrication is used on the gear end and the drive end,which improves the better heat dissipation, and also improves the better lubrication effectof the bearing and gear.
Equipment parameters
Application fields:
1、Water treatment industry：Roots blowers are used in sewage treatment plants to provide oxygen for biochemical reactions.
2、Farming industry：Roots blowers are widely used in aquaculture industry due to their advantages of maximum air supply, appropriate pressure and output gas without pollution. In addition to increasing the content of dissolved oxygen in water, they can also accelerate the oxidation and decomposition of certain harmful substances in water, playing an important role in purifying water quality.
3、Mining industry：Generally used for mine ventilation and flotation of ore minerals in mines.Roots blowers are often installed on a simple system device that can transport materials. The high pressure produced by the Roots blower can be used to transport materials to warehouses thousands of meters away, reducing the loss of manpower.
4、Food Industry：The vacuum packaging system of Roots blower in the food industry is a major creative application in the packaging of millet, beans and other foods. The vacuum packaging can resist mechanical pressure and reduce shock, which is conducive to long-distance transportation and sales.
3 products found
Model: AS-SL7018
Discover high-efficiency Roots blowers for industrial wastewater treatment - OEM & ODM solutions available!
Favorites
Model: AS-SL7018
Discover high-efficiency Roots blowers for industrial wastewater treatment - OEM & ODM solutions available!
Favorites
Model: AS-SL7018
Discover high-efficiency Roots blowers for industrial wastewater treatment - OEM & ODM solutions available!
FavoritesStart Your Wastewater Treatment Solution Now
With 20 years of wastewater treatment experience, AquaSust is the trusted expert in biochemical pool solutions. If you have any questions about wastewater treatment, please contact us and we will provide you with the best solution.
