Tube Diffuser
Your Professional Tube Diffuser Supplier
Trust Aquasust, your professional aeration diffuser supplier. We are committed to providing high-performance, long-life aeration diffusers designed to enhance wastewater treatment efficiency. Whether your needs are for large-scale industrial applications or delicate engineering, our customized solutions ensure optimal performance for your project.
Product Introduction
Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced. The Aquasust Tube diffusers are the best solution for long and narrow aeration tanks.Having opportunity to choose different material, connection thread, and size makes Aquasust Smart tube diffuser fit to any type of waste water. The diffusers in Aquasust are produced with the latest technology and the diffusers are used in wastewater treatment plants. The projection of each diffusers of Aquasust was done after Research and Development studies that response the requests of waste water treatment plants. Materials used in Aquasust diffusers are carefully selected according to the processes of wastewater treatment plants and tested regularly before shipment.
Aquasust Tube diffuser Advantage
1.Fomular EPDM with strengthen ABS.Juntai Smart Tube Diffuser pipe is made from protector and strengthen ABS material, which can make the tube diffuser durable
2.Fomular EPDM import from Lanxess Germany.Juntai Diffuser use the fomular EPDM wich UV protector which import from Lanxess Germany. This kind of EPDM with less plasticizer.
3.Low pressure loss and longer duly life.The Wall thickness of the Membrane is 1.8 to 2.0mm ,which isnot too thick and too thinner.
4.Quality Control.Strictly Quality Control when producing, then make each tube diffuser Consistent qualitywhich can make you total Aeration tank easy Maintain
5.Double Check valve
6.Non tearing & non clogging--shaped slits.
Product Parameters
Item number | TD63 |
TD93
|
TD113
|
|
Bubble type
|
Fine bubble
|
Fine bubble
|
Fine bubble
|
|
Tube diameter(MM)
|
63(2.5Inch)
|
93(3.5Inch)
|
113 (4.5Inch)
|
|
Material
|
Special Formula EPDM with UV Protector import from Germany /Silicon Membrane
|
||
Tube material :Acrylonitrile-butadiene-styrene with UV Protector(ABS) | |||
Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
Connector | 3/4NPT | 3/4NPT | 3/4NPT |
Flow Range(m³/h) | 2-14 | 5-20 | 6-28 |
Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
Service Area | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
3 products found
Model: AS-TD93
MOQ: 100 piece
Unit Price: US $ 8-10 / piece
AS-TD93 Fine Bubble Tube Diffuser: Premium OEM/ODM solution for textile wastewater treatment.
FavoritesModel: AS-TD113
MOQ: 100 piece
Unit Price: US $ 8-10 / piece
AS-TD113 Wholesale Tube Diffuser: Boost oxygen transfer in Pulp & Paper wastewater treatment.
Favorites

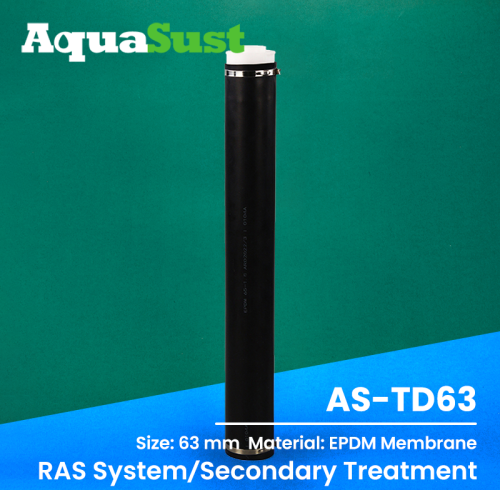

Model: AS-TD63
MOQ: 100 piece
Unit Price: US $ 8-10 / piece
AS-TD63 Custom Tube Diffuser: Superior Anti-clogging & Corrosion Resistance for Municipal & Hospital Wastewater Treatment.
Favorites
Aquasust Tube Diffuser Specification
|
Item No.
|
AS-TD63
|
AS-TD93 |
AS-TD113
|
|
Bubble Type
|
Fine Bubble
|
||
Tube Diameter(mm) | 63mm | 93mm | 113mm |
Material | Special Formula EPDM with UV Protector import from Germany /Silicon Vembrane | ||
Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS) | |||
Length | 500/750/1000mm | ||
Connector | 3/4NPT | ||
Flow Range(m2 /h) | 2-14 | 5-20 | 6-28 |
Bubble Size(mm) | 1-2 | ||
Service Area(m2) | 0.75-2.5 | 1.0-3.0 | 1.5-2 5 |
Aquasust Tube Diffuser： Choose The Right Product For You
EPDM Tube Diffuser
Aquasust's tube diffuser utilizes EPDM with a "bimodal" molecular weight distribution. EPDM with a "bimodal" molecular weight distribution possesses the mechanical properties of high molecular weight polymers as well as the processing properties of low molecular weight polymers. EPDM, together with the introduction of controlled long-branched chain EPDM, well balanced the performance of the polymer. EPDM has high strength and high resilience and also has good tear resistance.
Applicable Secondary Wastewater：
1. Municipal sewage and industrial sewage.
2. Restoration and treatment of lakes and rivers
3. Aquaculture.
silicone Tube Diffuser
To improve the elasticity of silicone and improve tear resistance, we adopt the industry's unique vinyl silicone rubber and with low benzene silicone rubber, in the vulcanization crosslinking link, the use of a multi-component catalyst in the presence of Pt, so that the hydrogen-containing silicone alkenyl double bond silicohydrogen addition reaction, resulting in a centralized cross-linking, to improve cross-linking, so that the vulcanization of the finished product in the maintenance of its elasticity at the same time, a substantial improvement in the performance of the tear, the tear strength to increase to more than 35KN/m.
Applicable Secondary Wastewater：
1. Municipal sewage
2. Industrial Wastewater
3. Rehabilitation of lakes and rivers
4. Aquaculture
Aquasust Tube Diffuser: Everything You Need to Know!
A Tube Diffuser is a type of aeration equipment used in wastewater treatment, whose main function is to diffuse gases, especially oxygen, uniformly and efficiently into a liquid, usually in biological treatment processes such as activated sludge. This equipment is usually composed of porous materials or PP tubes with small holes that produce tiny bubbles, thus increasing the dissolution rate of oxygen and promoting the growth of microorganisms and the decomposition of organic matter.
How to Choose the Tube Diffuser
When selecting a 63mm, 93mm, or 113mm diameter tube diffuser, there are several key factors that you need to consider to ensure that you select the best unit for your aeration system and wastewater treatment needs. Below are some of the important aspects to consider when making your selection:
1. Tube Diffuser Treatment Capacity and Tank Size:
(1) 63mm tube diffuser: suitable for small to medium-sized treatment facilities with an ideal water depth of up to 3 meters. This size of tube diffuser is very effective in small systems, providing a high density of bubbles and good oxygen transfer for lower flow requirements.
(2) 93mm tube diffuser: suitable for medium-sized treatment systems in water depths up to 5 meters. This medium-sized tube diffuser balances coverage area and bubble refinement and is suitable for treating medium loads of wastewater.
(3) 113mm tube diffuser: best suited for large and deep water treatment tanks, where water depths can exceed 6 meters. The larger diameter allows for wider bubble distribution and is suitable for high flow rates and large aeration requirements.
2. Tube Diffuser Oxygen Transfer Needs:
Smaller tube diffusers (e.g. 63mm and 93mm) typically produce smaller bubbles, which helps to increase oxygen dissolution rates and are particularly suitable for application scenarios where oxygen transfer efficiency is required.
3. Tube Diffuser Energy Efficiency of Tube Diffuser Systems:
While smaller tube diffuser sizes may require a higher initial pumping pressure, they can save energy consumption in the long run through higher oxygen transfer efficiency. For larger tube diffuser sizes (113mm), while a single tube diffuser covers a larger area, it may result in lower overall energy efficiency.
4. Tube Diffuser Pollutant Type and Concentration:
Highly concentrated or difficult-to-biodegrade contaminants may require more intense aeration, where a larger diameter tube diffuser (e.g., 113mm) can provide greater bubble flow to help treat these contaminants.
5. Ease of Installation and Maintenance of the Tube Diffuser:
Smaller tube diffusers (e.g. 63mm and 93mm) are generally easier to install and maintain. Considering the cost of routine maintenance and ease of operation, smaller sizes may be preferred.
6. Tube Diffuser Cost-effectiveness:
Consider the purchase cost, installation costs, operation and maintenance costs, and life expectancy. The smaller tube diffuser, although it may have a higher unit price, may result in greater long-term savings in operating costs due to its higher oxygen transfer efficiency.
Tube Diffuser of Secondary Wastewater Treatment Application
Aquaculture Wastewater Treatment
Municipal Wastewater Treatment
Textile and Dyeing Wastewater Treatment
Pulp and Paper Industry Wastewater Treatment
Food and Beverage Wastewater Treatment
Oil Refinery Wastewater Treatment
Brewery Wastewater Treatment
Hospital Wastewater Treatment
Start Your Wastewater Treatment Solution Now
With 20 years of wastewater treatment experience, AquaSust is the trusted expert in biochemical pool solutions. If you have any questions about wastewater treatment, please contact us and we will provide you with the best solution.
