MBBR Media
We are a professional MBBR Media (MBBR System) manufacturer and supplier in China. Here you can find high-quality products in a competitive price. Also we supply OEM service of products for you.
25 products found

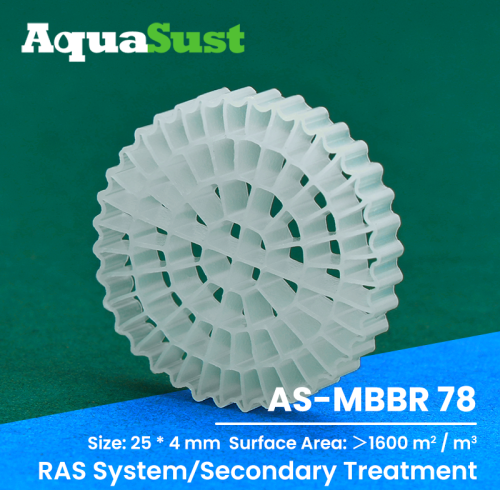

Model: AS-MBBR78
MOQ: 10 cubic meter
Unit Price: US $ 136-146 / cubic meter
High-Quality AS-MBBR78 MBBR Media: Customizable & Corrosion-Resistant, Ideal for Tilapia Farming.
Favorites

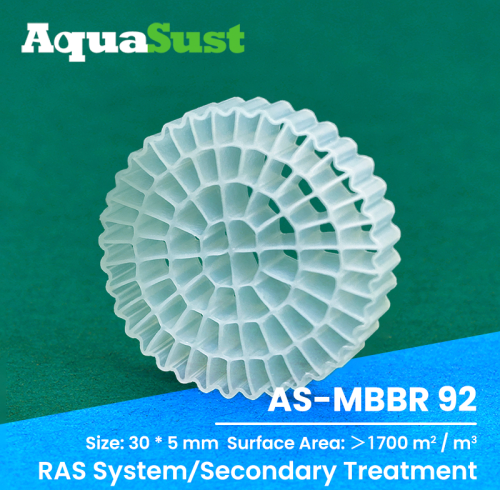

Model: AS-MBBR92
MOQ: 10 cubic meter
Unit Price: US $ 136-146 / cubic meter
AS-MBBR92: For Pond Ecosystem & RAS. Boost water treatment efficiency with 1700 m2/m3 high surface area carrier.
Favorites

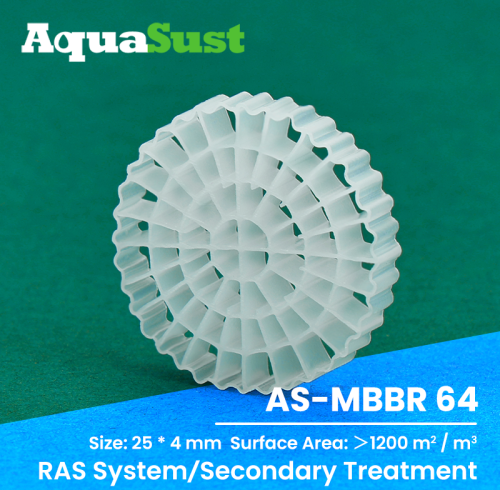

Model: AS-MBBR64
MOQ: 10 cubic meter
Unit Price: US $ 136-146 / cubic meter
AS-MBBR64 by Design: Leading the industry with corrosion-resistant MBBR Media. Choose OEM, ODM for tailored solutions.
Favorites
MBBR Media
High-quality MBBR biological fillers, the key to improving the effect of sewage treatment.
Introduction of MBBR biological fillers.
MBBR media are small plastic carriers for the Moving Bed Biofilm Reactor (MBBR) system. They're important as they provide a large surface area for microorganisms to form biofilms. In the reactor, the media keep circulating to efficiently decompose organic matter, making MBBR a preferred option for treating municipal and industrial wastewater.
Its characteristics are:
Large specific surface area: Usually hundreds or even thousands of square meters per cubic meter. Some efficient ones can exceed 2,000 square meters per cubic meter, offering enough space for microorganisms to attach, grow and reproduce, improving treatment efficiency.
Good hydrophilicity: Microorganisms are hydrophilic. MBBR fillers are treated or selected from certain materials to have good hydrophilicity, quickly absorbing water in sewage to create a good growth environment.
High biological activity: Features and materials on the filler surface can boost microorganism growth, metabolism and activity. For example, some add elements or substances beneficial to growth to stimulate reproduction.
Fast biofilm formation: They can form stable biofilms in a short time. Their surface structure and properties help attachment and growth, and the water and air flow in the reactor also promotes it. It generally takes several hours to several days.
Good fluidization performance: The filler's density is close to that of water. With aeration or stirring, it becomes fluidized in the reactor, fully mixing and contacting with sewage to ensure the biofilm gets enough oxygen and nutrients in time for better treatment.
Long service life: MBBR fillers have high mechanical strength and chemical stability, maintaining good performance for years or even longer under normal conditions.
Aquasust MBBR Media Specification
|
Mbbr Media（Type）
|
Diameter * Height（mm）
|
Surface Area（m2 / m3） |
Inside Void Size （mm） | Number of units per m3 |
|
AS-MBBR 04
|
11 * 7
|
＞900 |
5-6 | 940K |
AS-MBBR 05 | ＞1000 | 980K | ||
AS-MBBR 06 | 16*10 | ＞800 | 7-8 | 260K |
AS-MBBR 08 | 10 * 5 | ＞3500 | 15.4M | |
AS-MBBR 19 | 25 * 12 | ＞650 | 118K | |
AS-MBBR 37 | ＞800 | 5-6 | ||
AS-MBBR 38 | 25 * 10 | |||
AS-MBBR 40 | 15 * 15 | ＞900 | Unique | 230K |
AS-MBBR 61 | 25 * 4 | ＞1250 | 260K | |
AS-MBBR 64 | ＞1200 | |||
AS-MBBR 78 | ＞1600 |
Aquasust MBBR Media ：Choose The Right Product For You
AS-MBBR04
1.Surface Area: Very High Surface Aear
2.Anti-Clogging: Middle Void Space, inside Void size 5-6mm, limiting the risk of Clogging
3. Loading weight each square meter surface area 125m2-145/m2
4.The material properties of the media provide strength for longevity and a specific gravity that ensures uniform distribution
AS-MBBR37
1. Specific surface area requirement up to 800m²/m³.
2. Anti-clogging design with 4-5mm internal pore size.
3. Good flowability with a uniform cylindrical shape, 25mm x 12mm.
4. Resilient to shock loads.
5. High processing capacity and efficiency.
AS-MBBR37 apply in the MBBR projects field as below:
Petrochemical wastewater treatment
Landfill leachate treatment
Pulp and paper industry wastewater treatment
Dairy wastewater treatment
Food and beverage industry wastewater treatment
lospital wastewater treatment
Textile industry wastewater treatment
Meat processing slaughterhouseeMunicipal wastewater treatment
AS-MBBR78S
Size:Ф25*4mm Hole Numbers:78
Material: 100% White Virgin HDPE Weight:125KG/CBM
Densilty:0.96-0.98g/cm3
Surface Area:>1600m?/m3
Packing Numbers:>260000pcs/m?
Dosing Ratio:15-65%
Membrane-Forming Time:3-15days
Nitrification Efficiency :400-1200gNH4 N/M.d
BOD5 Efficiency:2000-10000g BOD5/M .d
COD5 Efficiency:2000-15000 gCOD5/M .d
Applicable Temperature:5-60°C
Life-Span:>20 years
Special Ferture ofAS-MBBR78S
Better water treatment efficiency
Better Fluidization Because Uinque S shape
Not easy to Stick To the wall of Aerobic and Anerobic Tank
Lower weight per Square Meter surface which can much save energy and running cost
MBBR Media of Secondary Wastewater Treatment Application
Aquaculture Wastewater Treatment
Municipal Wastewater Treatment
Textile and Dyeing Wastewater Treatment
Pulp and Paper Industry Wastewater Treatment
Food and Beverage Wastewater Treatment
Oil Refinery Wastewater Treatment
Brewery Wastewater Treatment
Hospital Wastewater Treatment
Sample Content
Start Your Wastewater Treatment Solution Now
With 20 years of wastewater treatment experience, AquaSust is the trusted expert in biochemical pool solutions. If you have any questions about wastewater treatment, please contact us and we will provide you with the best solution.
