RAS System Special s Shape AS-MBBR78 Media For Industrial Wastewater Treatment
RAS System Special s Shape AS-MBBR78 Media For Industrial Wastewater Treatment
| Categories | RAS System Special S Shape AS-MBBR78 Media |
|---|---|
| Brand | AquaSust Wastewater Treatment Solutions |
| Model | AS-MBBR 78S |
| Membrane-Forming Time | 3-15days |
| Applicable Temperature | 5-60℃ |
| Life Span | More than 20 years |
| Unit Price | US $ 150-160 / cubic meter |
| FOB port | Shanghai |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Dec 23,2024 |
Detail Information

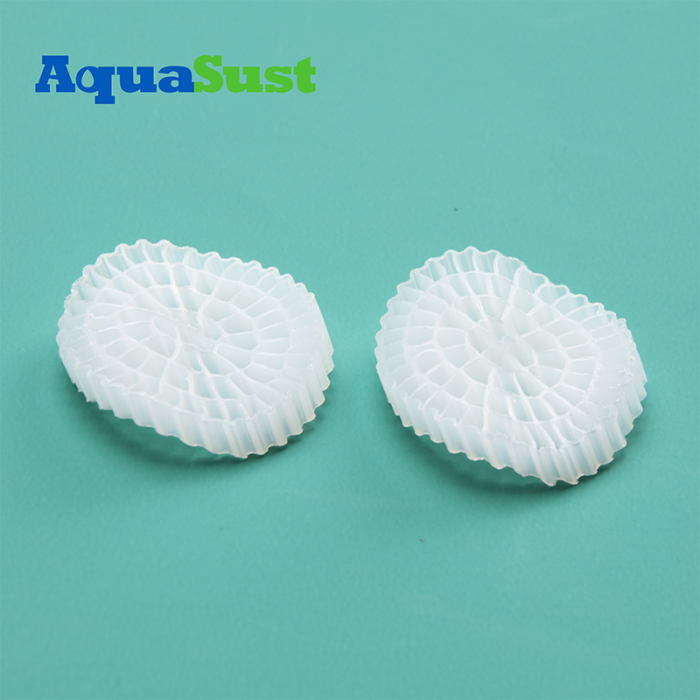

MBBR Media AS-MBBR 78S Introduction
Category: Biochemical Tank - MBBR Media
Band: AquaSust
Model: AS-MBBR 78S
Size: Φ25*4mm
Material: 100% White Virgin HDPE
Weight: 125KG/CBM
Densilty:0.96-0.98g/cm3
Weight: 125KG/CBM
Surface Area:>1600m2/m3
Packing Numbers:>260000pcs/m³
Dosing Ratio: 15-65%
Membrane-Forming Time:3-15days
Applicable Temperature:5-60℃
Nitrification Effciency :400-1200gNH4 N/M³.d
BOD5 Efciency:2000-10000g BOD5/M³.d
COD5 Effciency:2000-15000g COD5/M³.d
Applicable Temperature:5-60°C
Life-Span:>20 years
MBBR Media AS-MBBR 78S offers several advantages
1. Better Water Treatment Efficiency:
The unique design and material composition of the AS-MBBR78 media enhance the overall efficiency of water treatment processes.
The increased surface area supports a higher density of microorganisms, leading to more effective breakdown of organic matter and nutrients.
This results in improved water quality, which is crucial for the health and growth of aquatic organisms in RAS systems.
2. Better Fluidization Due to Unique S Shape:
The special S shape of the AS-MBBR78 media promotes better fluidization within the reactor.
This design ensures more uniform distribution and movement of the media, optimizing contact time between the biofilm and the water.
Improved fluidization enhances the efficiency of biological processes, such as nitrification and organic matter decomposition.
3. Not Easy to Stick to the Walls of Aerobic and Anaerobic Tanks:
The media's design and material properties prevent it from sticking to the walls of both aerobic and anaerobic tanks.
This non-sticking feature helps maintain consistent and efficient operation of the reactor, reducing maintenance needs and preventing the formation of dead zones.
4. Lower Weight per Square Meter Surface:
The AS-MBBR78 media is designed to be lightweight, which reduces the overall weight per square meter of surface area.
This lightweight nature translates to lower energy consumption, as less energy is required to achieve and maintain fluidization.
Reduced energy usage leads to lower running costs, making the system more cost-effective and energy-efficient.
MBBR Media AS-MBBR 78S In Industrial Wastewater Treatment Application
AS-MBBR 78S Media is designed to enhance the efficiency of biological treatment processes in industrial wastewater treatment. Here are the key aspects of its application:
1.Biological Treatment Process:
The media provides a large surface area for biofilm growth, which is essential for the biological degradation of organic pollutants.
It enhances the treatment process by increasing the microbial population that breaks down contaminants in wastewater.
2.Flexibility and Adaptability:
AS-MBBR 78S can be used in new treatment plants or for upgrading existing ones to improve performance.
It is suitable for various types of industrial wastewater, including those from food processing, chemical manufacturing, and textile industries.
3.Efficiency:
The media is designed to optimize oxygen transfer and mixing, ensuring efficient treatment even with high organic loads.
It helps in achieving high removal rates of BOD (Biochemical Oxygen Demand) and COD (Chemical Oxygen Demand).
4.Durability and Maintenance:
Made from durable materials, AS-MBBR 78S media is resistant to chemical and physical wear, ensuring a long service life.
Low maintenance requirements make it cost-effective over time.
5.Installation and Operation:
The media is easy to install and does not require complex infrastructure changes.
It can be integrated into existing systems with minimal disruption to ongoing operations.
Parameter
|
Mbbr Media（Type）
|
Diameter * Height（mm）
|
Surface Area（m2 / m3） |
Inside Void Size （mm） | Number of units per m3 |
|
AS-MBBR 04
|
11 * 7
|
＞900 |
5-6 | 940K |
AS-MBBR 05 | ＞1000 | 980K | ||
AS-MBBR 06 | 16*10 | ＞800 | 7-8 | 260K |
AS-MBBR 08 | 10 * 5 | ＞3500 | 15.4M | |
AS-MBBR 19 | 25 * 12 | ＞650 | 118K | |
AS-MBBR 37 | ＞800 | 5-6 | ||
AS-MBBR 38 | 25 * 10 | |||
AS-MBBR 40 | 15 * 15 | ＞900 | Unique | 230K |
AS-MBBR 61 | 25 * 4 | ＞1250 | 260K | |
AS-MBBR 64 | ＞1200 | |||
AS-MBBR 78 | ＞1600 |
Recommended accessories:
Disc Diffuser
Tube Diffuser
Tube Settler
Dewatering Machine
