Choose AquaSust Professional Wastewater Treatment Experts
Industrial Wastewater Solutions with K3 MBBR Media
Categories | MBBR Media |
---|---|
Brand | AquaSust Wastewater Treatment Solutions |
Model | MBBR19 |
Membrane-Forming Time | 3-15days |
Applicable Temperature | 5-60℃ |
Life Span | More than 20 years |
Unit Price | US $ 136-146 / cubic meter |
FOB port | Shanghai |
Terms of Payment | L/C, D/A, D/P |
Update Time | Dec 23,2024 |
Detail Information

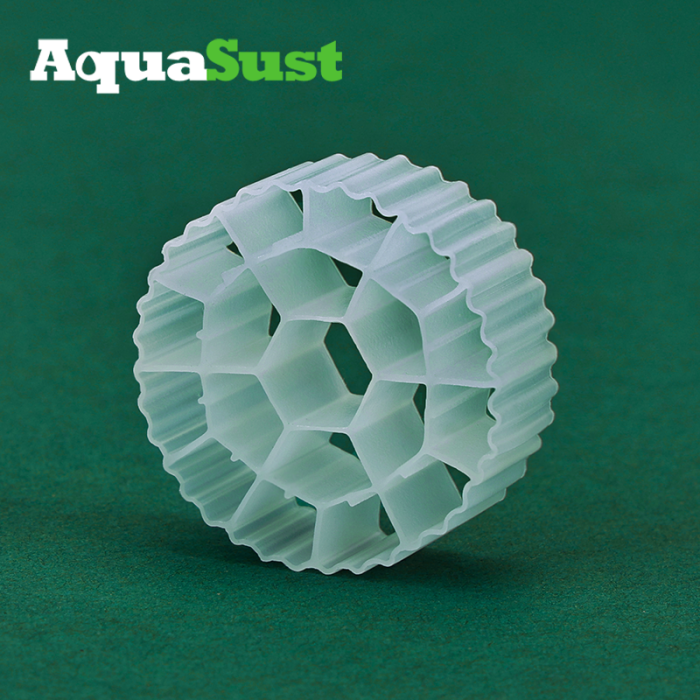

MBBR Media AS-MBBR19 Introduction
Category: Biochemical Tank - MBBR Media
Band: AquaSust
Model: AS-MBBR19
Size: Φ25*12mm
Material: 100% White Virgin HDPE
Densilty:0.96-0.98g/cm3
Surface Area:>650m2/m3
Membrane-Forming Time:3-15days
Applicable Temperature:5-60℃
MBBR Media AS-MBBR19 Working principle
Reactor design:
1,Reactor internal filling medium: MBBR19 is filled with a large amount of plastic bio-carriers (commonly known as fillers), which have a large specific surface area and provide a surface for microorganisms to grow and attach.
2,Filler suspension: Through aeration or mechanical stirring, the filler is kept suspended and flowing in the reactor.
Microbial growth:
1,Biofilm formation: Microorganisms attach to the surface of the filler to form a biofilm. These microorganisms form a stable biofilm on the surface of the filler, which helps to degrade organic matter in wastewater.
1,Coexistence of multiple microorganisms: The biofilm includes a variety of microorganisms such as bacteria, protozoa and fungi, which can synergistically degrade a variety of pollutants in wastewater.
Wastewater treatment process:
1,Aeration: By aerating the reactor, oxygen is provided to support the growth and metabolism of aerobic microorganisms.
2,Organic matter degradation: Organic pollutants in wastewater are degraded through the metabolism of microorganisms and converted into carbon dioxide, water and other harmless substances.
3,Nitrogen and phosphorus removal: In some cases, nitrogen and phosphorus removal can also be achieved in the reactor, through nitrification and denitrification
MBBR Media AS-MBBR19 Application
AS-MBBR19 MBBR media can be used to treat textile and dyeing wastewater by providing a large number of bio-surface attachment points that promote microbial degradation of organic matter, resulting in effective removal of pollutants and improved wastewater treatment efficiency.
Parameter
Mbbr Media(Type)
|
Diameter * Height(mm)
|
Surface Area(m2 / m3) |
Inside Void Size (mm) | Number of units per m3 |
AS-MBBR 04
|
11 * 7
|
>900 |
5-6 | 940K |
AS-MBBR 05 | >1000 | 980K | ||
AS-MBBR 06 | 16*10 | >800 | 7-8 | 260K |
AS-MBBR 08 | 10 * 5 | >3500 | 15.4M | |
AS-MBBR 19 | 25 * 12 | >650 | 118K | |
AS-MBBR 37 | >800 | 5-6 | ||
AS-MBBR 38 | 25 * 10 | |||
AS-MBBR 40 | 15 * 15 | >900 | Unique | 230K |
AS-MBBR 61 | 25 * 4 | >1250 | 260K | |
AS-MBBR 64 | >1200 | |||
AS-MBBR 78 | >1600 |
Recommended accessories:
Disc Diffuser
Tube Diffuser
Tube Settler
Dewatering Machine
