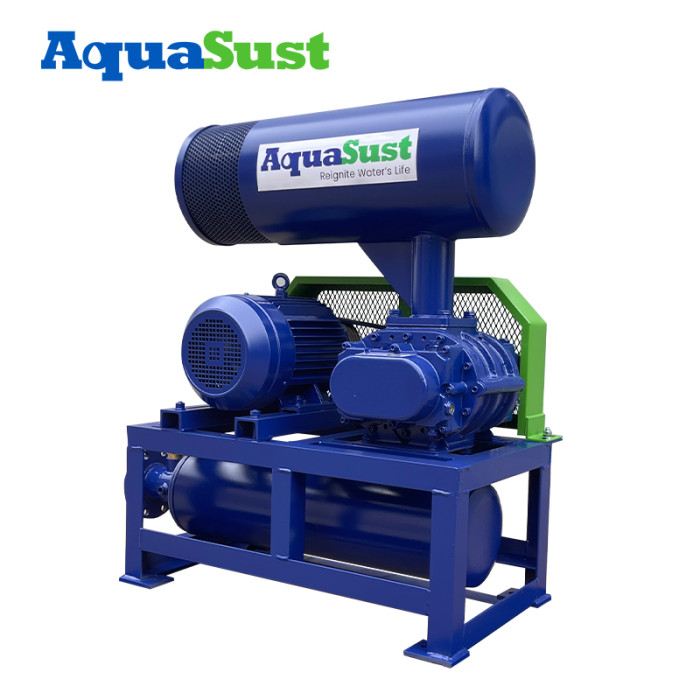

High-Efficiency Roots Blowers For Recirculating Aquaculture Systems (RAS)

Categories	Roots Blower
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-SL7018
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Working Conditions and Principles

There are two impellers on two parallel shafts, and there is always a small gap between the impellers and the inner hole surface of the oval case and the impellers, because the impellers rotate at a constant speed in the opposite direction to each other, so that a certain amount of gas surrounded by the case and the impellers is transported from the side of the inhalation to the side of the discharging.

The impellers always keep the correct phase and do not collide with each other, so it can be high speed and does not need internal lubrication, and the structure is simple, the operation is smooth, the performance is stable, and it is suitable for many purposes, and it has been used in a wide range of fields.

Product Features

1. The impeller and shaft adopt the structure form of integral casting, with good overall machining precision.

2. Helical gear structure, smooth transmission, low noise.

3. Adopting CR brand fluoroelastomer oil seals and labyrinth air seals made of PTFE, which have good abrasion resistance and high-temperature resistance.

4. The gear ends use double-row ball bearings for durability.

5. Cylindrical roller bearings are used at the drive end. Its ability to withstand vertical loads is greatly enhanced.

6. Utilizes Tuthil's proprietary noise-reducing cylinder design to reduce the noise of the turbine mainframe.

7. Versatility of mounting, the blower can be mounted with the same feet for both horizontal and vertical air intake, with the ability to change the position of the drive shaft, right or left, top or bottom.

8. Dual tank structure, both at the gear end and at the drive end uses flash lubrication, better heat dissipation, and lubrication effect on bearings and gears Gear lubrication overall machining precision.

Roots Blower in Recirculating Aquaculture Systems (RAS) Applications:

1.Fish Farming

In fish culture tanks, Roots Blower ensures proper respiration and healthy growth of fish by providing a continuous air supply and maintaining high dissolved oxygen concentration in the water column, increasing culture efficiency and production.

2. Shrimp and Shellfish Farming

For shrimp and shellfish aquaculture, Roots Blower's airflow delivery effectively improves water quality, reduces the occurrence of diseases, and improves the quality and stability of the aquaculture water.

3.Biofilter Aeration

In biofilter, the airflow provided by Roots Blower can provide sufficient oxygen for aerobic microorganisms, promote the degradation of organic matter and ammonia nitrogen, and improve the effect of water treatment.

4.Aerosol lifting device

Roots Blower is used in airlift devices to circulate the water by rising air bubbles, effectively removing suspended solids and organic matter from the water, keeping the water clean and healthy.

5.Sewage Treatment

In the wastewater treatment unit of the RAS system, Roots Blower enhances the aerobic treatment process by providing airflow to promote the degradation of organic pollutants and reduce pollution to the environment.
