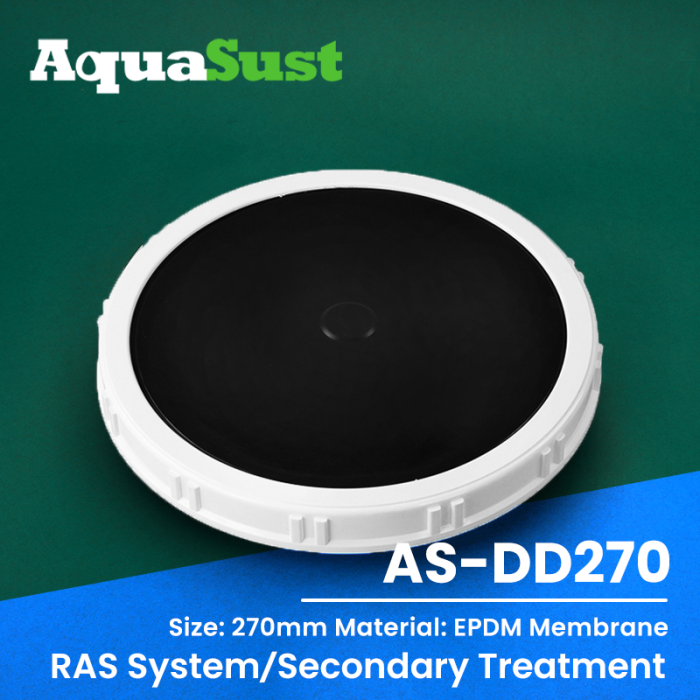

Manufacturer Disc Diffuser AS-DD270 |9"Fine Bubble Diffuser Uniform Bubble Distribution And High Aeration Efficiency | For Food And Beverage Industry Wastewater Treatment
Manufacturer Disc Diffuser AS-DD270 |9"Fine Bubble Diffuser Uniform Bubble Distribution And High Aeration Efficiency | For Food And Beverage Industry Wastewater Treatment
Categories | Disc Diffuser |
---|---|
Brand | AquaSust Wastewater Treatment Solutions |
Model | AS-DD270 |
Membrane Material | EDPM, Rubber,Silica Gel |
Connector | 3/4"NPT male thread |
Plate Color | Black, White, Gray, Black |
Unit Price | US $ 8-10 / piece |
FOB port | Shanghai |
Terms of Payment | L/C, D/A, D/P |
Update Time | Dec 23,2024 |
Detail Information
Disc Diffuser AS-DD270 Introduction
Category: Biochemical Tank - Aeration Diffuser
Brand: AquaSust
Model: AS-DD270
Size: 9 inch
Material: EDPM, Rubber, Silica Gel
Disc Diffuser AS-DD270 Advantage
Designed to provide uniform bubble distribution and high aeration efficiency, our 9" Fine Bubble Aeration ensures optimal performance in wastewater treatment systems. By utilizing advanced technology and high-quality materials, this aerator produces fine, uniform bubbles. The formation of these fine bubbles helps to increase oxygen dissolution rates and transfer efficiency, providing a uniform supply of oxygen throughout the treatment tank. This not only accelerates microbial metabolic processes and improves the removal efficiency of organic pollutants, but also significantly reduces energy consumption as the fine bubbles provide higher oxygen transfer efficiency.
Disc Diffuser AS-DD270 Application
The Manufacturer Disc Diffuser AS-DD270 is a 9-inch fine bubble diffuser that enables uniform bubble distribution and efficient aeration. Designed for food and beverage industry wastewater treatment, it fully dissolves oxygen into the wastewater to increase the rate of degradation of organic matter in the wastewater. By promoting effective contact between gas and liquid, the AS-DD270 diffuser effectively increases the oxidizing capacity of the wastewater treatment system, thereby improving the efficiency and quality of wastewater treatment and helping companies meet environmental standards.
Parameter
No.
|
Item No.
|
AS-DD270
|
1
|
Bubble Type
|
Fine Bubble
|
2 | Plate Diameter | 270mm |
3 | Membrane Diameter | 9 inch |
4 | Membrane Material | EDPM, Rubber,Silica Gel |
5 | Base Material | ABS, ABS + Glass Fibre,PP PP+ Glass Fibre |
6 | Connector | 3/4"NPT male thread |
7 | Weight | 0.62KG |
8 | Plate Color | Black, White, Gray, Black |
9 | Membrane Thickness | 2mm |
10 | Bubble Size | 1-2mm |
11 | Design Flow | 3-4 m3/h |
12 | Flow Range | 1-8 m3/h |
13 | SOTE | ≥38% |
14 | SOTR | ≥0.45kg O2/h |
15 | SAE | ≥8.9kg O2/kw*h |
16 | Headloss | 1500-4300Pa |
17 | Service Area | 0.25-1.0 m2/pcs |
18 | Service Life | > 7years |
