Coarse Bubble Aeration for Deep Aeration Tank

Categories	Coarse Bubble Aeration
Brand	AquaSust Wastewater Treatment Solutions
Model	Vibrating Disc Aeration Diffuser
FOB port	Shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

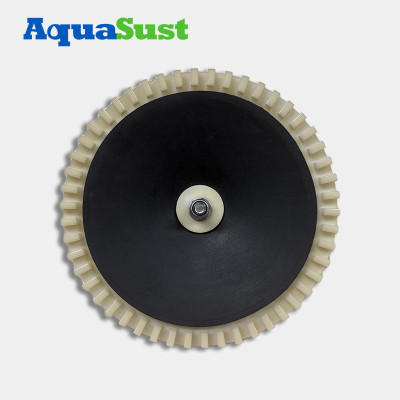

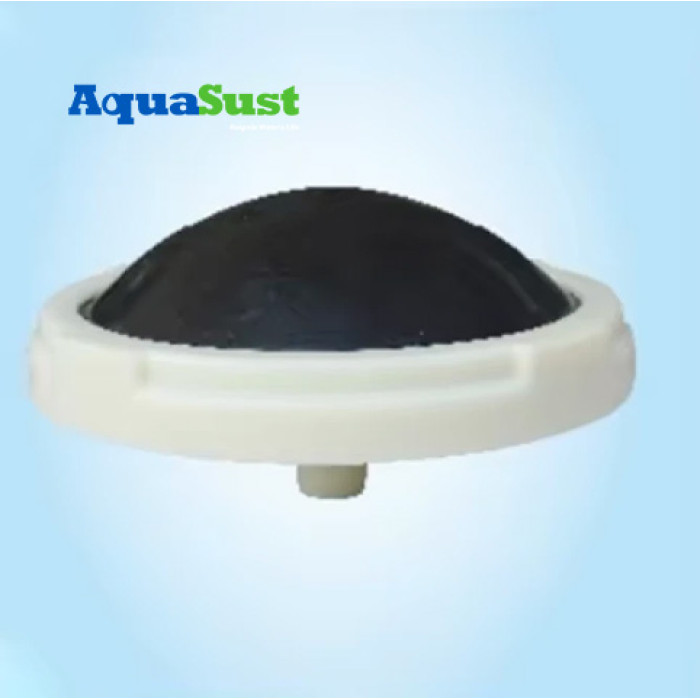

Vibrating Disc Aeration Diffuser

The vibrating aerator consists of a high-pressure injection molded corrosion-resistant, high-strength nylon engineering plastic chassis and a special synthetic rubber diaphragm with a long service life. The aerator of anti-fouling can lower part of the component with the function of a discharge outlet, can carry out automatic cleaning between the diaphragm and chassis, chassis of the baffle plate can guarantee the air evenly distributed around, diaphragm design into a real role in check valve, to ensure that the air flow stops, reduces the crumbs and liquid into the airline to very low levels. The lugs on the chassis are filled with specially shaped grooves in the diaphragm to reduce the loss of the diaphragm by high-pressure air, and all the cross-lines of the chassis have suitable radi to eliminate fatigue and external stress fractures under all service loads.

Vibrating Disc Aeration Diffuser Performance Parameters

Item number	DD125	Item number	DD125
Gas Volume(m3/h)	1-4	Theoretical dynamic efficiency	2.5-3.8
Bubble diameter（mm）	2.5-3.5	Service Area	0.2-0.5
Oxygenation(kgO2/h)	0.12-0.35	Air resistance loss	≤3500
Oxygen utilization rate	13.5%-17.1%	Service life	≥5

Vibrating Disc Aeration Diffuser Advantage

1. No blockage: the sharp hole structure at the bottom can prevent debris from settling in the aerator. The rate cotrolled through the vent produces a reliable flushing efect. Different materials with sharp holes can flex the pores to "sweep" debris from the surface.

2. Will not blow out: By passing the stress to the outer lip, the fingers are locked against blowing out.This action forces the cap to stick to the aerator.The notch that strengthens the cap also strengthens the locking lip to reduce movement and prevent the cap from leaving the plate.

3.To reduce the impact ol brttleness to a small dogreo: The unique cap and chassis structure enables the cap to lock onto the chassis when britle.Due to the use of low hardness cap material, caps are still more flexible than other aerators untl they hit the water.

4.Do not need maintenance: because the vibration aerator will not be blocked, will not blow out and is not easy to brittle fracture, so in fact,no maintenance. This performance is not available in other aorators.

Vibrating Disc Aeration Diffuser deep aeration tank application

1. Improve dissolved oxygen: Through vibration aeration, Vibrating Aerator-DD125 can fully dissolve air into water, increase the oxygen content in the water body, and improve the dissolved oxygen level in the deep aeration tank.

2. Promote sewage treatment: Vibrating Aerator work can stir the water body, promote the oxygen in the deep aeration tank and the full contact of wastewater, accelerate the degradation and removal of organic matter in sewage process.

3. Enhance the mixing effect: Vibrating Aerator-DD125 vibration can effectively enhance the mixing effect in the 3. deep aeration tank, so that the temperature of the water body in the pool, dissolved oxygen, pH and other parameters are evenly distributed to improve treatment efficiency.

4. Reduce bubble agglomeration: the role of vibration aerator helps to break the bubble cluster, prevent bubbles in the pool bottom aggregation, improve aeration efficiency, to ensure the stability and reliability of the aerator in the long run.

5. Improve water quality: By increasing dissolved oxygen levels and promoting wastewater degradation, the Vibrating Aerator-DD125 is able to effectively improve water quality in deep aeration tanks, reduce odor and pollutant content, and achieve higher treatment results.
