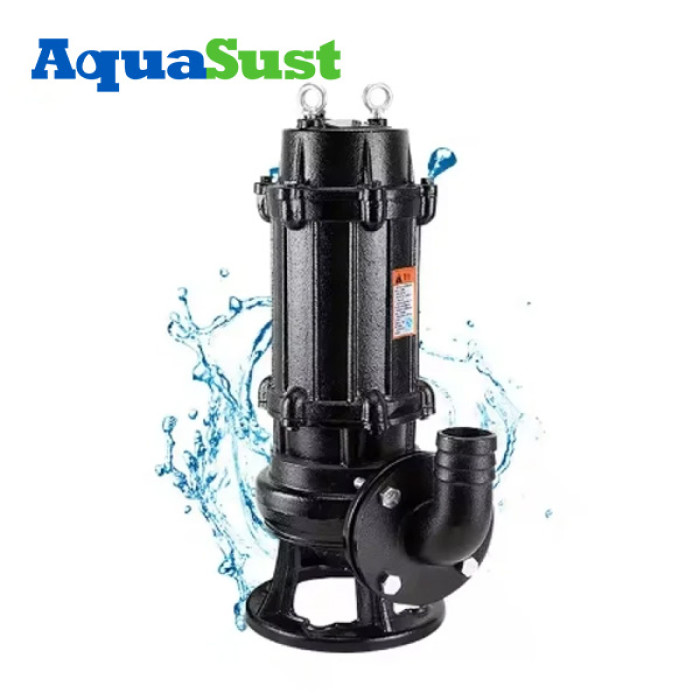

High Pressure Multistage Submersible Sewage Pumps For Wastewater Treatment

Categories	Sewage Pump
Brand	AquaSust Wastewater Treatment Solutions
Model	Sewage Pumps
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Sewage Pumps Introdtion:

Categories: Sewage Pumps

Brand: AquaSust

Power Source: Electric

Structure: Multistage Pump

Warranty: 3 years

Model Number: Water Pumps

Outlet Size: Customer

Power: Customer

motor: Customer

Application: Wastewater treatment

Certification: RoHS, ce, IECEE

Size: 60*25*30CM

Weight: 32KG

Warranty: one year

MOQ: 1

Aquasust Sewage Pumps Advantages:

1. WQ/QW submersible pump sewage is developed with itenational advanced technology. It has been widely used in industrial, mining, construction, hospital, municipal engineering, garden, fountain, sewage treatment, chemical ,define effluent,tertiary sewage treatment , anaerobic wastewater treatment and other industries for more than ten years

2. The sewage pump submersible overcurrent parts are all made of sanes steel precision casting, which has the carateristis of no pllution and corosion rsistnce, and expands the application fields of water supply , aerobic wastewater treatment and drainage

3. The sewage water pump is made of ellent sainles steel 304/316 material. It has pure texture and beatiul appearance, which reduces secondary pllution and fuly meets the requirements of national geen environmental protection for primary sewage treatment

4. The drainage sewage pump is enegficient, reasonable in sructure, non-blocking and ani-winding, and has the charateristics of safe and reliable operation and long service life.The dual-rail automatic coupling device is equipped as needed to failiate the inallatioan tertiary treatment of sewage

5. The mechanical seal adopts double end sealing material, and uses high-quality hard aly such as tungsten carbide,and runs in the oil chamber for a long time, which Can make the stainless steel sewage water pump run continuously for more than 10,000 hours for secondary sewage treatment

These advantages make the sewage pump the preferred equipment for many industrial applications, especially where large quantities of wastewater or sludge need to be processed on a continuous basis.

Product Parameters

PARAMETERS
Model	Flow(m3/h)	Head(m)	Power(KW)	Hydraulic Pressure( mpa )	Weight(KGS)
50WQ10-10-0.75	10	10	0.75	602530	28
50WQ7-15-1.1	7	15	1.1	602530	30
50WQ10-15-1.1	10	15	1.1	602530	30
25WQ5-22-1.1	5	22	1.1	602530	32
65WQ20-10-1.5	20	10	1.5	602530	40
80WQ40-7-1.5	40	7	1.5	602530	42
100WQ50-5-1.5	50	5	1.5	602530	44
80WQ40-16-4	40	18	4	713033	64
100WQ60-12-4	60	13	4	713033	66
100WQ80-10-4	80	12	4	713033	66
80WQ40-28-7.5	40	40	7.5	863438	108
100WQ65-22-7.5	65	30	7.5	863438	110

Aquasust Sewage Pumps Applications:

Wide range of applications and powerful features:

1.Agricultural irrigation

2.River discharge

3.Engineering Discharge

4.Sewer drainage

5.Septic tank discharge

6.Basement drainage

Sewage Pupm Installation Instructions:

1.Check whether pump fasteners are loosen and whether the pump body runner is blocked by foreign matters before installation to avoid damage of impeller and pump body in running wastewater sludge.

2.Supporters for the outlet pipe should be installed separately so that the weight will not be added to the pump so as to prevent it from deformation. The pump base for both movable and fixed installation must be leveled by a level. After the base is ready, install the pump on the base and then use a level to check horizontal and vertical situation between the pump and motor shaft. Use the iron shim to change the height of the base if the pump is out of level. Then grout the base and anchor bolt holes by pouring the concrete into the grout hole，reduce wastewater treatment cost.

3.Sewage treatment stages has levelness of the coupling device should be calibrated by a level when coupling installation is adopted. Horizontal level tolerance should not exceed 0.1mm/m. Use the measure gage to calibrate parallelism of two coupling rods to ensure the parallelism tolerance will not exceed 0.2mm/m.

4.Tighten the anchor bolt to make sure there is no looseness between the anchor bolt and concrete in case of bad influence on sewage air pump performance when starting.

5.For easy maintenance and safe use, install a regulating valve on the outlet pipe and a pressure gauge near the outlet to guarantee the normal operation within the rated performance range, which lengthens the lifetime of sewage treatment plant air pumps.

6.Rotate the impeller from the suction side after installation. Disassemble the pump and find out the reasons if there is friction or stuck pump.

7.The processes of wastewater treatment plant in pump installation can be divided into three types, movable type, fixed type and coupling type
