Plate Aeration Diffuser
| Categories | Plate Aeration Diffuser |
|---|---|
| Brand | AquaSust Wastewater Treatment Solutions |
| Model | AS-PD660 |
| FOB port | Shanghai |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Dec 23,2024 |
Detail Information

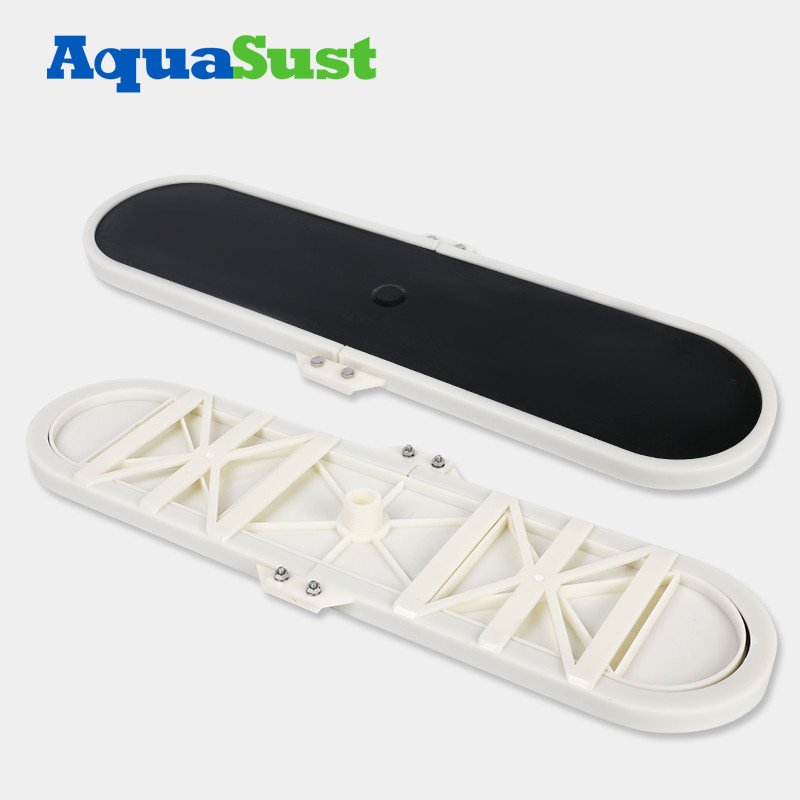

Plate Aeration Diffuser
The unique structure of this aerator design ensures that the system can maintain low energy consumption and high efficiency. When the blower is working, the bubbles produced by the aerator are uniform, forming a good lotus effect. The support plate of the microporous aerator is made of special material rubber and high quality plastic, which achieves a double balance of strength and toughness. The film is placed flat on the pallet for one pressurized film punching. Its unique opening method ensures an even distribution of bubbles produced during blower operation, achieving excellent results. Advantages include maintaining a constant oxygen transfer rate for a wide range of operating conditions and can be used in intermittent or continuous aeration systems. It features high oxygen utilization, high reliability, excellent waterproofing, and long life.
Plate Aeration Diffuser Performance Parameters
Item Number | PD660 | PD1100 |
Membrane Material | EPDM/Silicon | EPDM/Silicon |
Membrane Thickness | 1.8-2.0mm | 1.8-2.0mm |
Bubble Diameter | 0.8-1.9mm | 0.8-1.9mm |
Standard Airflow | 6m3/h | 10m3/h |
Aeration Range | 1-16m3/h | 4-32m3/h |
Resistance Loss | 2.0-4.3kPa | 2.0-4.3kPa |
Effective Service Area | 0.5-2 .5m2 | 1.0-4.0m2 |
Plate Aeration Diffuser advantage
1. The aerator system with unique design structure effectively reduces energy consumption, improves efficiency and provides a reliable guarantee for gas transmission.
2. During the operation of the blower, the aerator produces bubbles uniformly, presenting a beautiful lotus effect, promoting the dissolution of oxygen in the water and the biodegradation process.
3. This aeration method is not only suitable for intermittent operation system, but also can be easily adapted to the continuous aeration system, flexible to meet the needs of different processes.
4. Including good sealing, easy and fast installation, and easy maintenance, for the reliable operation of the system provides reliable technical support.
Plate Aeration Diffuser Application
1.Provide oxygen: Plate Aeration Diffuser increases the oxygen content in the water body by injecting air bubbles into the water, which promotes the respiration and growth of aquatic organisms.
2. Improve water quality: The injection of air bubbles can increase the dissolved oxygen in the water, improve water quality, reduce the accumulation of harmful gases and keep the water body clean.
3. Prevent hypoxia: Through continuous bubble injection, Plate Aeration Diffuser can prevent hypoxia in the water body and protect the living environment of aquatic organisms in the aquaculture farm.
4. Improve aquaculture efficiency: Good oxygen supply and water quality improvement help to improve the aquaculture efficiency and growth rate of fish, shrimp and other aquatic organisms.
5. Promote ecological balance: Plate Aeration Diffuser maintains the balance of oxygen and harmful gases in the water body, which helps to maintain the ecological balance of aquaculture farms, reduce the incidence of disease and improve the stability of aquaculture.
