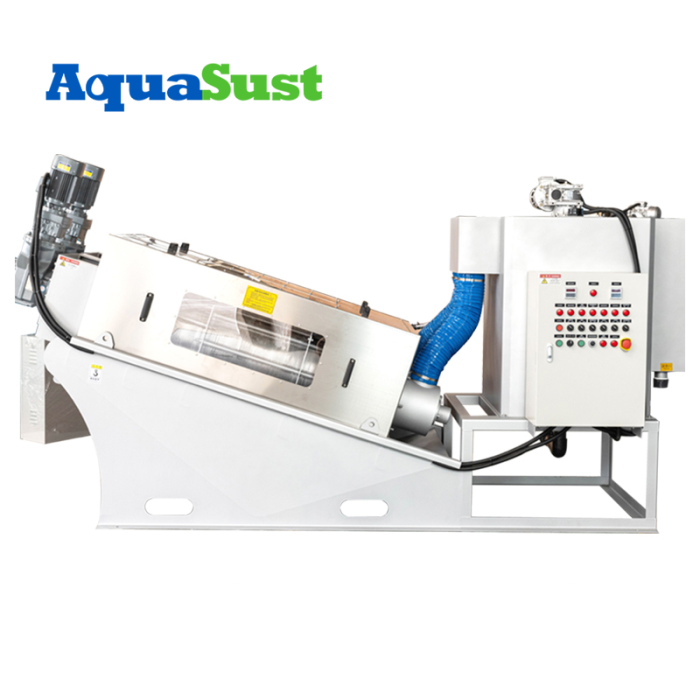

Cassava Dewatering Machine Screw Press AS-NH303 |Manufacturing Screw Press Dewatering Sludge Machine For Dairy Wastewater Treatment

Categories	Medium Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH303
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH303 Selection

(1) AS-NH303 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

150[kg-DS/h] 10000[mg/L]

150[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=15m³/h

Treatment volume:150[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:15m*h

(2)150[kg-DS/h]x0.3%x1000x1000[g/kg]= 450L/h

Treatment volume:150[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:450L/h

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH303 Parameters

AS-NH303 SELECTION PARAMETERS
Processing capacity	90~150(DS-kg/h)
Electricity consumption	3kw/h
Flushing water consumption	120L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	620mm
Mechanical size	L3605V1470H1780(mm)
Net weight	1358kg
Operating weight	2750kg
