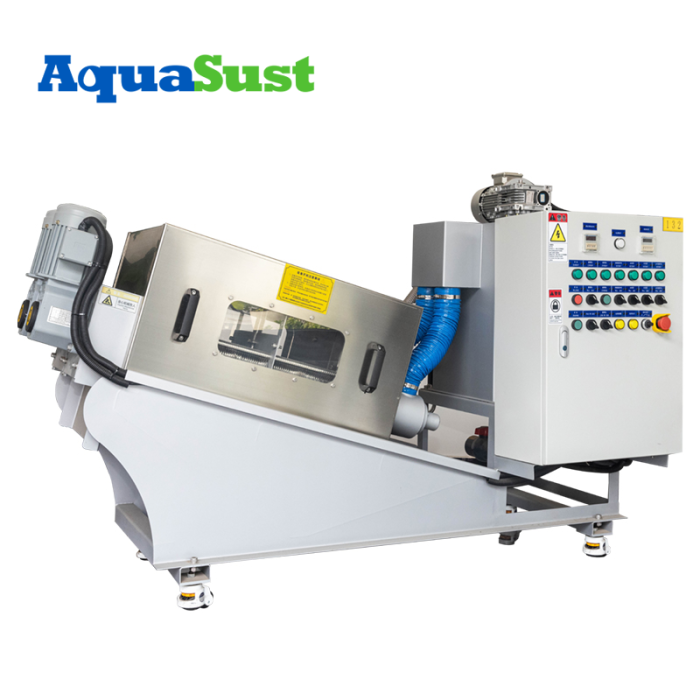

Screw Press Sludge Dewatering Machines AS-NH132 | Customized Dewatering Screw Press for Petrochemical Wastewater Treatment

Categories	Small Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH132
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH132 Selection

(1) AS-NH132 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

20[kg-DS/h] 10000[mg/L]

20[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=2m³/h

Treatment volume:20[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:2m*h

(2) 20[kg-DS/h]x0.3%x1000x1000[g/kg]= 60L/h

Treatment volume:20[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:60L/h

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH132 Parameters

AS-NH132 SELECTION PARAMETERS
Processing capacity	12~20(DS-kg/h)
Electricity consumption	0.3kw/h
Flushing water consumption	24L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	300mm
Mechanical size	L2000V700H1060(mm)
Net weight	360kg
Operating weight	400kg
