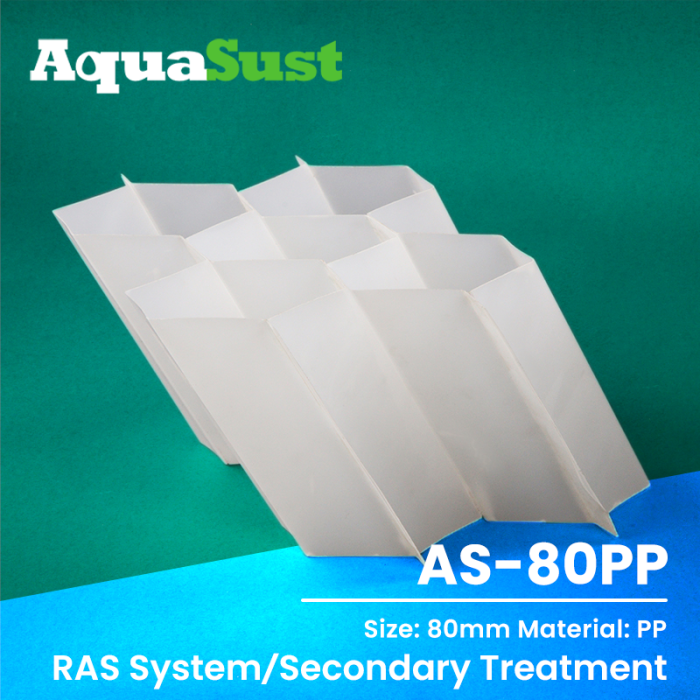

Supplier Tube Settler AS-80PP | 80mm Lamella Settler for Easy Installation and Maintenance | For Recirculating Aquaculture Systems (RAS)

Categories	PVC Tube Settler
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-80PP
Material	100% New PP with UV protector
Color	Blue or white
Service Life	5 to 10 years
Unit Price	US $ 27-35 / cubic meter
FOB port	Shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Tube Diffuser AS-80PP Introduction

Category: Complementary Products - Tube Settler
Band: AquaSust

Model: AS-80PP

Size: 80mm

Gravity: 0.92g/cm3 Slope: 60°

tube settler For Recirculating Aquaculture Systems (RAS)

Tube Settler AS-80PP Advantage

Designed with a focus on easy installation and maintenance, the AS-80PP tube settler provides an efficient and convenient solution for water treatment projects. With its unique laminated plate structure, this settler not only optimizes floor space and improves settling efficiency, but also simplifies the installation process. The laminated design allows for a significant increase in the effective settling area per unit area, resulting in faster settling rates and improved water quality when treating large volumes of wastewater.

Tube Settler AS-80PP Application

In recirculating aquaculture systems (RAS), the AS-80PP tube settler, with its optimized design and efficient solids removal capacity, is a key technology for maintaining water quality and promoting aquatic animal health. With an inclined pipe configuration, it significantly increases the settling area and effectively removes fish waste, feed residues and other suspended particles from the water, thereby improving settling efficiency and reducing system energy consumption. In addition, the design reduces the need for chemical flocculants, further reducing operating costs and mitigating ecological impacts. The application of tube settlers not only ensures clean and stable aquaculture water, but also provides an environmentally friendly and cost-effective water treatment solution for the aquaculture industry, supporting the industry's move towards sustainability.

Parameter

Model	A	B	C	D	Material	Service Life	Surface Area
AS-25PP	30MM	20MM	<20MM	⌀25MM	pp+uv	5-10Year	>95m2/m3
AS-35PP	40MM	20MM	<20MM	⌀35MM	pp+uv	5-10Year	>95m2/m3
AS-50PP	60MM	28MM	<30MM	⌀50MM	pp+uv	5-10Year	>95m2/m3
AS-80PP	80MM	35MM	<45MM	⌀80MM	pp+uv	5-10Year	>95m2/m3
