Wholesale Tube Settler AS-50PP |50mm Lamella Settler for Low Energy Consumption and Operating Cost| For Pulp And Paper Industry Wastewater Secondary Treatment
Wholesale Tube Settler AS-50PP |50mm Lamella Settler for Low Energy Consumption and Operating Cost| For Pulp And Paper Industry Wastewater Secondary Treatment
Categories | PP Tube Settler |
---|---|
Brand | AquaSust Wastewater Treatment Solutions |
Model | AS-50PP |
Material | 100% New PP with UV protector |
Color | Blue or white |
Service Life | 5 to 10 years |
Unit Price | US $ 27-35 / cubic meter |
FOB port | Shanghai |
Terms of Payment | L/C, D/A, D/P |
Update Time | Dec 23,2024 |
Detail Information

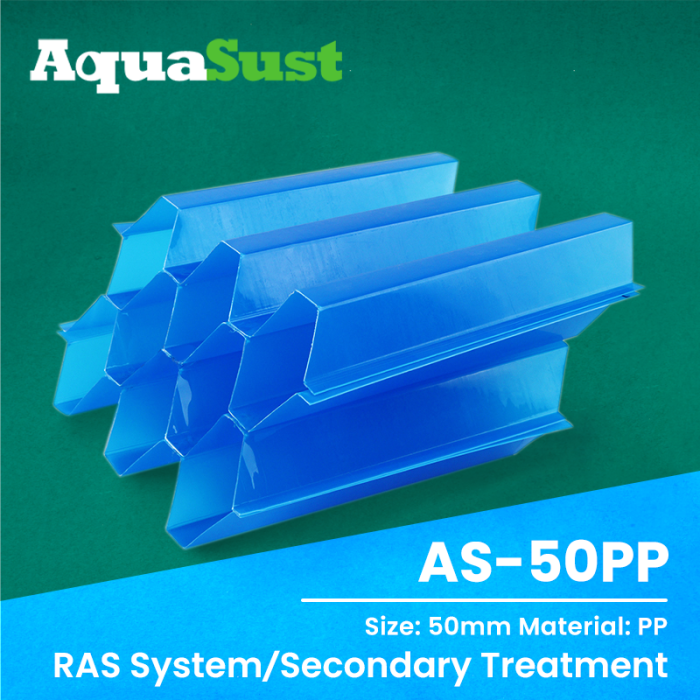

Tube Diffuser AS-50PP Introduction
Category: Complementary Products - Tube Settler
Band: AquaSust
Model: AS-50PP
Size: 50mm
Gravity: 0.92g/cm3 Slope: 60°
Tube Settler AS-50PP Advantage
The AS-50PP tube settler stands out in the water treatment sector with its low energy consumption and operating costs. The compact cascade design of this equipment greatly increases the effective settling area per unit area, thus improving the settling efficiency without additional energy consumption. Through this design, solids in the water stream are effectively separated in a shorter period of time, reducing reliance on energy-intensive operations such as pumping and agitation, and further reducing overall energy consumption.
In addition, the AS-50PP tube settler has relatively low maintenance and operating costs. Its simple structure makes it easy to install and maintain, reducing reliance on specialized technicians. Due to its efficient settling performance, the need for treatment chemicals such as chemical flocculants is reduced, resulting in lower operating costs. These features make the AS-50PP tube settler a cost-effective water treatment solution, particularly suitable for application scenarios seeking to reduce water treatment costs and improve environmental sustainability. By increasing treatment efficiency while reducing energy and O&M costs, the AS-50PP tube settler is uniquely positioned to provide a cost-effective water quality management solution.
Tube Settler AS-50PP Application
For secondary treatment of wastewater in the pulp and paper industry, the AS-50PP tube settler significantly reduces operating costs and energy consumption by optimizing settling efficiency. The equipment utilizes its unique inclined tube design to accelerate the precipitation of suspended solids, effectively increasing treatment speed and capacity and reducing the burden on subsequent treatment stages. Its simple structure not only makes it easy to maintain, but also saves space and energy, providing a cost-effective wastewater treatment solution for the pulp and paper industry. As a result, tube precipitators have become a key technology for improving pulp and paper wastewater treatment performance and reducing environmental impact.
Parameter
Model |
A
|
B
|
C | D | Material | Service Life | Surface Area |
AS-25PP | 30MM | 20MM | <20MM | ⌀25MM | pp+uv | 5-10Year | >95m2/m3 |
AS-35PP | 40MM | 20MM | <20MM | ⌀35MM | pp+uv | 5-10Year | >95m2/m3 |
AS-50PP | 60MM | 28MM | <30MM | ⌀50MM | pp+uv | 5-10Year | >95m2/m3 |
AS-80PP | 80MM | 35MM | <45MM | ⌀80MM | pp+uv | 5-10Year | >95m2/m3 |
