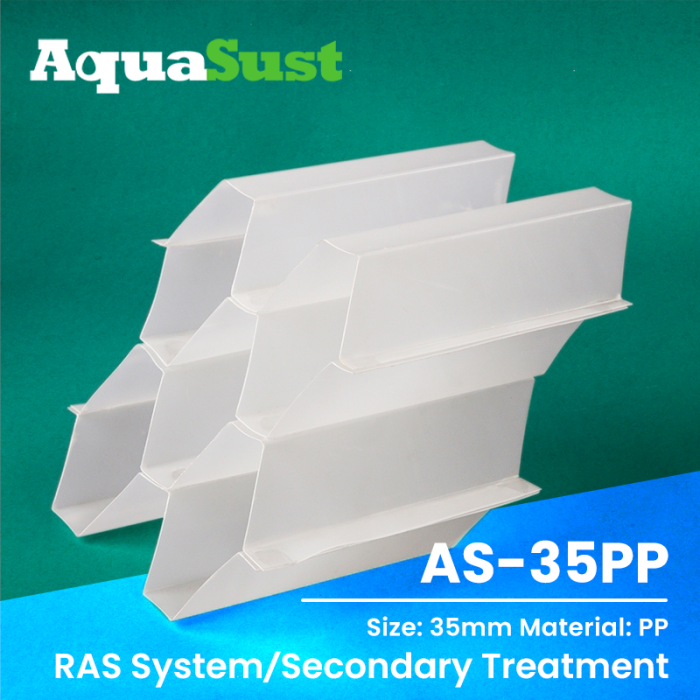

Manufacturer Tube Settler AS-35PP | 35mm Lamella Settler for Shock resistance & Corrosion resistance | For Textile And Dyeing Wastewater Secondary Treatment

Categories	PVC Tube Settler
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-35PP
Material	100% New PP with UV protector
Color	Blue or white
Service Life	5 to 10 years
Unit Price	US $ 27-35 / cubic meter
FOB port	Shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

Tube Diffuser AS-35PP Introduction

Category: Complementary Products - Tube Settler
Band: AquaSust

Model: AS-35PP

Size: 35mm

Gravity: 0.92g/cm3 Slope: 60°

tube settler For Textile And Dyeing Wastewater Secondary Treatment

Tube Settler AS-35PP Advantage

The AS-35PP tube settler provides a robust solution for water treatment projects with excellent shock and corrosion resistance. This tube settler has been designed with special materials and construction that allow it to withstand sudden load changes and harsh chemical environments, ensuring continuity and stability of the water treatment process. Impact resistance means that the AS-35PP tube settler will remain operational even under extreme water impacts, with no loss of efficiency due to sudden increases in treatment capacity. Corrosion resistance, on the other hand, ensures that structural integrity and functional durability are maintained after prolonged exposure to corrosive chemicals, thus significantly extending the life of the equipment.

Tube Settler AS-35PP Application

In the secondary treatment of textile and dye wastewater, the AS-35PP tube settler is the key technology with its efficient solids-liquid separation capability. This type of wastewater presents COD and BOD characteristics due to the high concentration of colored substances, dyes, auxiliaries and chemicals. The Tube Sedimenter optimizes the sedimentation process through the design of inclined pipes, which increases the effective sedimentation area and significantly improves the treatment efficiency and capacity while saving space. This not only effectively removes suspended particles and dyes from the water, reduces the requirement for subsequent treatment steps and improves the quality of the effluent, but it is also widely used in textile and dye industry wastewater treatment due to its simplicity of construction, ease of maintenance and cost-effectiveness. Tubular precipitators help companies meet stricter environmental discharge standards, while promoting the reuse of water resources and the realization of sustainable development goals, making a significant contribution to environmental protection and industry progress.

Parameter

Model	A	B	C	D	Material	Service Life	Surface Area
AS-25PP	30MM	20MM	<20MM	⌀25MM	pp+uv	5-10Year	>95m2/m3
AS-35PP	40MM	20MM	<20MM	⌀35MM	pp+uv	5-10Year	>95m2/m3
AS-50PP	60MM	28MM	<30MM	⌀50MM	pp+uv	5-10Year	>95m2/m3
AS-80PP	80MM	35MM	<45MM	⌀80MM	pp+uv	5-10Year	>95m2/m3
