Supplier MBBR Media AS-MBBR92 | 1700 m2/m3 High Surface Area MBBR Carrier | For Pond Ecosystem & Recirculating Aquaculture Systems (RAS)

Categories	MBBR Bio Media
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-MBBR92
Membrane-Forming Time	3-15days
Applicable Temperature	5-60℃
Life Span	More than 20 years
Unit Price	US $ 136-146 / cubic meter
FOB port	Shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Dec 23,2024

Contact Now

Favorites

Detail Information

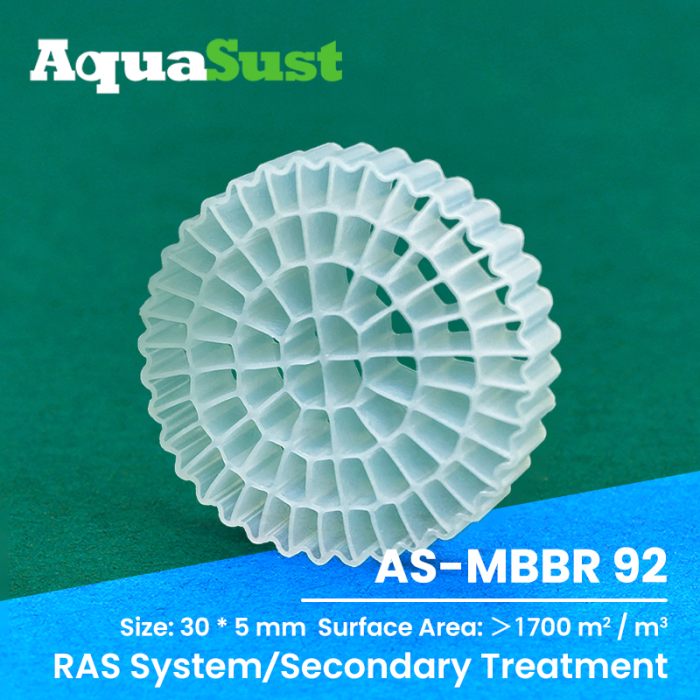

MBBR Media AS-MBBR92 Introduction

Category: Biochemical Tank - MBBR Media
Band: AquaSust

Model: AS-MBBR92

Size: Φ30*5mm

Material: 100% White Virgin HDPE
Densilty: 0.96-0.98g/cm3

Surface Area: >1700m2/m3

Membrane-Forming Time: 3-15days

Applicable Temperature: 5-60℃

mbbr For Pond Ecosystem & Recirculating Aquaculture Systems (RAS)

MBBR Media AS-MBBR92 Advantage

AS-MBBR92, the latest MBBR media independently developed by SUST, stands as the sole offering in the market. Boasting an exceptionally high specific surface area, fosters optimal conditions for microbial growth, consequently enhancing the efficiency of wastewater treatment. Its lightweight nature, coupled with the elevated specific surface area, contributes to a smaller footprint for the treatment system, leading to lower project energy consumption. Undoubtedly, AS-MBBR92 emerges as the top choice for both aquaculture and wastewater treatment applications.

MBBR Media AS-MBBR92 Application

The integration of MBBR technology into pond ecosystems and Recirculating Aquaculture Systems (RAS) signifies a transformative approach to enhancing water quality and sustainability in aquaculture practices. In pond ecosystems, AS-MBBR92 aids in the efficient breakdown of organic waste, reducing harmful ammonia levels and minimizing the risk of eutrophication. This process is facilitated by biofilm growth on floating media, which provides a habitat for beneficial bacteria that perform essential biological filtration, thereby maintaining a healthy aquatic environment conducive to the growth of fish and plants.

For RAS Systems, the application of AS-MBBR92 is pivotal in enabling high-density fish farming with minimal water usage. RAS relies on the recirculation of water within closed-loop systems to provide a controlled environment for aquatic species. By incorporating MBBR, RAS can achieve efficient removal of waste products, such as ammonia and nitrites, through the action of biofilms. This ensures the water is clean and oxygen-rich, promoting healthier and faster-growing aquatic populations.

Furthermore, the use of AS-MBBR92 in both pond ecosystems and RAS minimizes the environmental footprint of aquaculture operations by significantly reducing the need for water exchange and lowering the discharge of pollutants into natural water bodies. This dual application of AS-MBBR92 underscores its versatility and effectiveness in supporting sustainable aquaculture practices, optimizing water use efficiency, and enhancing the overall productivity of aquaculture systems.

Parameter

Mbbr Media（Type）	Diameter * Height（mm）	Surface Area（m2 / m3）	Inside Void Size （mm）	Number of units per m3
AS-MBBR 04	11 * 7	＞900	5-6	940K
AS-MBBR 05	11 * 7	＞1000	5-6	980K
AS-MBBR 06	16*10	＞800	7-8	260K
AS-MBBR 08	10 * 5	＞3500		15.4M
AS-MBBR 19	25 * 12	＞650		118K
AS-MBBR 37	25 * 12	＞800	5-6
AS-MBBR 38	25 * 10	＞800	5-6
AS-MBBR 40	15 * 15	＞900	Unique	230K
AS-MBBR 61	25 * 4	＞1250		260K
AS-MBBR 64		＞1200
AS-MBBR 78		＞1600
